Applicable Field
1, Mining-mining, second-time breaking.
2, Road-repairing, breaking, foundation.
3, Construction-demolition of building and reinforced concrete.
4, Metallurgy-cleaning slag, demolition of furnace and foundaion.
5, Railway-tunneling, demolition of bridge.
6, Ship repairing-clearing rust from the hull.
7, Breaking frozen mud.

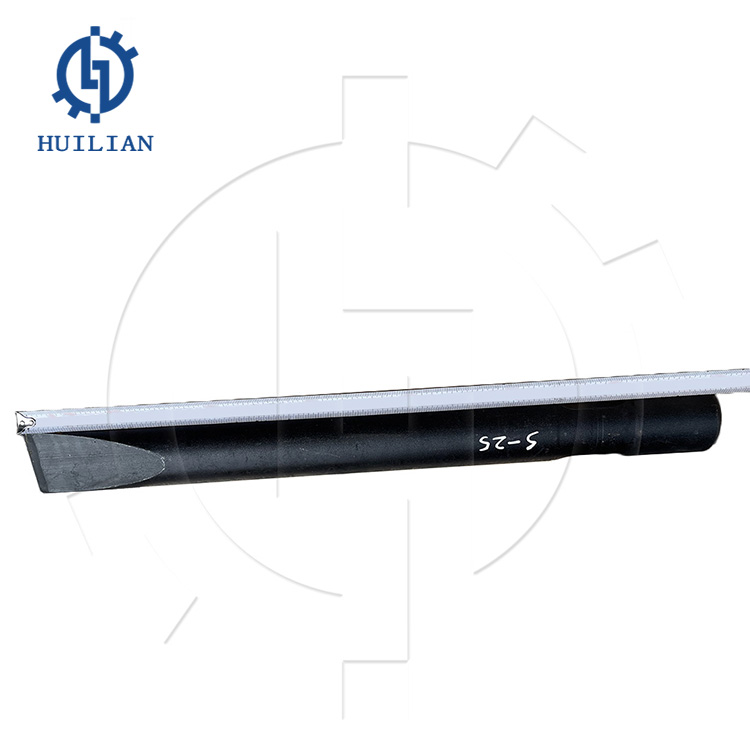

H-Wedge Type Chisel Tool for Hydraulic Breaker Rammer S25 Hydraulic Hammer
| Part name | Breaker Chisel | MOQ | 1PCS |
| Material | 42Cr, 42CrCo | Packing | Plywood cx |
| Model | S-25 | Loading Port | Huangpu |
| Logo | Customer's Request | Delivery time | 2-7days |
Related Models
| Rammer | S18, S21, S22, S23, S23N, S25, S25N, S26, S26N, S27, S29, S52, S54, S55, S56, S82, S83, |
| S84, S86, E63, E64, E65, E66, E66N, E68, G80, G80N, G88, G90, G100, G110, G120, G130, M14, M18 |
PRODUCT SPECIFICATEEEEEEEEEEIONS
| Brand | model | Diameter | length |
| SOOSA | SB10 | 40 | |
| SB20 | 45 | 500 |
| SB30 | 53 | 600 |
| SB35 | 60 | 600 |
| SB40 | 68 | 700 |
| SB43 | 75 | 750 |
| SB45 | 85 | 850 |
| SB50 | 100 | 1000 |
| SB60 | 125 | 1150 |
| SB81N/SB70 | 135 | 1250 |
| SB81 | 140 | 1250 |
| SB100 | 150 | 1400 |
| SB121 | 155 | 1400 |
| SB130/SB131 | 165 | 1500 |
| SB140/SB141 | 165 | 1500 |
| SB151 | 175 | 1600 |
| FURUKAW | HB100 | 55 | 600 |
| HB200 | 70 | 700 |
| HB700 | 104 | 1000 |
| HB1G | 36 | 400 |
| HB2G | 45 | 500 |
| HB3G | 60 | 600 |
| HB5G | 70 | 700 |
| HB8G | 90 | 900 |
| HB10G | 105 | 1000 |
| HB15G | 120 | 1100 |
| HB20G | 135 | 1250 |
| HB30G | 150 | 1400 |
| HB40G | 160 | 1400 |
| HB50G | 180 | 1600 |
| HB1200 | 140 | 1250 |
| F3 | 52 | 600 |
| F4 | 60 | 600 |
| F5 | 68 | 700 |
| F6 | 75 | 750 |
| F9 | 90 | 900 |
| F12 | 105 | 1000 |
| F19 | 120 | 1100 |
| F22 | 135 | 1250 |
| F27 | 140 | 1250 |
| F35 | 150 | 1400 |
| F45 | 165 | 1500 |
PRODUCT SPECIFICATEEEEEEEEEEIONS
Moil Point chisel
1.general use with demolition work and in quarriers
2.breaking up stag in steel mills
3.Demolishing foundations
4.Roadway drivage and roadway shots in mining
Blunt tool chisel
1.Crushing large rock pieces in quarries
2.Crushing slag
3.Group compression
Flat Chisel
1.(H-wedge,V-wedge)
2.General use with additional cutting CATEEEEEEEEEEion
3.drawing pits in rocky subsoil
4.separating rock slabs
Conical point chisel
1.Genaral demolition work where penetrative breaking is requires.
Chisel Products Parameter
Hydraulic Breaker Spare Parts
| Hammer Parts | Main Body | Back Head | Charging Valve | Cylinder | Seal Retainer |
| Socket Plug | Piston | Adapter | Valve | Valve Plug | Valve Sleeve |
| Front Head | Grease Nipple | Rod Pin | Stop Pin | Rubber Plug | Front Head Pin |
| Ring Bush | Thrust Bush | Upper Bush | Front Cover | Tool Bush | Lower Bush |
| Rod Moil Point | Chisel | Washer | Through Bolt | Side Rod | Hex Nut |
| Air Check Valve | Valve Adjuster | Accumulator | Accumulator Body | Accumulator Cover | Socket Bolt |
| Charging V/V | Diaphragm | Seal Kit | O-Ring Seal | Gas Seal | Step Seal |
| Buffer Seal | Dust Seal | U-Packing | Back-up ring | Side Bolt | Upper Cushion |
| Down Cushion | Tool Set | N2 Gas Charging Set | N2 Gas Cylinder | B-3way valve assy | |
About Us
Guangzhou Huilian Machinery Equipment Co., Ltd. Our company was established in 2011.
Huilian is a professional spare parts manufacturer and reliable supplier, providing almost all spare parts for various models rock breakers.
Specializes in:
Excavator accessories
Hydraulic breaker accessories
Breaker Spare Parts Suitable for the brands: SOOSAN, FURUKAWA, KRUPP, ATLAS-COPCO, EDT, JCB, NPK, , HANWOO, TOKU, FINE, OKADA, SAGA, MONTABERT, INDECO, KWANGLIM, RAMMER, KONAN, KOMATSU, GENERAL etc. Excavator Spare Parts Suitable for the brands: CATEEEEEEEEEE, KOMATSU, HITACHI, EC, KOBELCO, cx, SUMITOMO, DOOSA, NHYUNDAI, SANY, XG ect. The logistics in Guangzhou is very convenient that we deliver goods to the whole world.
